The 6mm and 8mm inner diameter sleeve sintered bronze bearing bushings are precision-made components designed to provide reliable and long-lasting performance in a variety of industrial applications. Constructed from sintered bronze, these bushings exhibit excellent wear resistance and friction-reducing properties, making them suitable for high-load and high-speed operations.
The sleeve design allows for easy installation and replacement, while the sintered bronze material ensures a tight and secure fit. The bushings' inner diameters of 6mm and 8mm, respectively, provide a perfect match for a range of shafts and components, ensuring smooth and efficient operation.
Overall, the 6mm and 8mm inner diameter sleeve sintered bronze bearing bushings are an excellent choice for enhancing the performance and reliability of industrial machinery and equipment.
Best value Sintered Bush – Great deals on Sintered Bush from www.bronzegleitlager.com
Self-Lubricating Bearing 6mm 8mm ID Sleeve Sintered Bronze Bearing Bushings,sintered plain bearings are made of powder-metallurgical tin bronze, which has a large working temperature range from -80 degrees Celsius to 120 degrees Celsius.
Oil-impregnated bushings. - Direct from China
- As good frictional property as high sliding velocity, Oiled Bearing Sleeves have a small friction coefficient of about 0.12-0.18.
- Oil impregnation enables very high sliding velocity and makes them suitable for rotating applications.
- Uxcell sintered bronze bushings are most suitable for applications with rotating movements and where self-lubricating properties of the material are a prerequisite.
Sleeve Sintered Bronze Bearing Bushings for Printing Machinery Tools
Sintered Bronze Bushing Characteristics
- Dry Self-lubricating
- Good load capacity
- Easy to assembly
- Minimum overall dimensions
- Standard items widely available
- Special items on demand
- Wide range of operating temperature
- Minimized wear and good service life
Chemical composition
| Element | Cu | Sn | Other |
| Min | Rest | 8% | 2% |
| Max | Rest | 10.5% | 2% |
Sintered Bronze Bearing Technical data
| Maximum Specific Load Static | 10 N/mm2 |
| Maximum Specific Load Dynamic | 5 N/mm2 |
| Maximum Sliding Speed | 10 m/s (1970 fpm) |
| Friction Factor | 0,08 ÷ 0,12 |
| Service Temperature Minimum | -5°C (+23°F) |
| Service Temperature Maximum | +90°C (+194°F) |
| Shaft Roughness (Suggested) | ≤0,2 Ra |
| Shaft Hardness (Suggested) | >350 Hb |
| Density Min. | 5,6 g/cm3 |
| Density Max. | 6,0 g/cm3 |
| Porosity Min. | 22,5 % Vpor/Vtot |
| Porosity Max. | 27,5 % Vpor/Vtot |
| Hardness Min. | 30 HB |
Oil-impregnated, ready for installation, self-lubricating, maintenance-free.
| | Sintered bronzes | Sintered iron | Graphite bronze | Graphite bronze water lubricated |
pv (N/mm2 · m/s)
continuous run
Service life 10.000 h | 1.6 | 1.6 | 0.4 | 0.3 |
p. max. (N/mm2)
Continuous run
Peripheral speed
approx. 0.17 m/s | 10.0 | 9.5 | 2.5 | 2.5 |
p.max (N/mm²)
Static load
0.1% deformation | 50.0 | 50.0 | 40.0 | 40.0 |
v.max (m/s)
Continuous run | 5.0 | 5.0 | 0.25 | 2.5 |
Lubrication
Most sintered bronze bearings are filled with oil. When storing and installing sintered bronze bearings, do not allow them to come into contact with absorbent materials that can draw oil from the bearings. No additional lubrication is required under normal conditions.
Main advantages of sintered bronze bearings
- Self-lubricating
- Maintenance-free
- High sliding velocities
- Low friction coefficient
- Low-noise running
Powder metallurgy process
1. First, the metal, in this case, bronze or bronze alloy, is transformed into powder. This can be achieved by a number of methods, including crushing, chemical decomposition and the most common atomization.
2. The metallic powder is then poured into a mold or mold cavity and compacted under great pressure in order to adhere the particles. This occurs at room temperature.
3. The metal part is then inserted into an oven where extreme heat melts the metal particles to form a rigid, porous and highly resistant component. This part of the process is called sintering.
The resulting porosity of sintered parts makes powdered metal products especially useful in lubrication applications and, as a result, bearings and wear plates are often made of sintered bronze. Powdered metal offers strength and flexibility. In addition, they offer an economical production process that includes oil impregnation or permanent lubrication.
Sintered Bronze Self-Lubricated Bearings Size Sheet
Sintered Bush Size
| 06-08-08 |
| 06-10-08 |
| 08-10-08 |
| 08-12-14 |
| 10-14-14 |
| 12-15-18 |
| 12-16-30 |
| 14-17-22 |
| 20-25-40 |
| 20-28-28 |
| 8-14-8/18-3 |
| 8-14-14/18-3 |
| 10-14-10/18-3 |
| 10-14-14/18-3 |
| 10-14-20/18-3 |
| 10-16-10/20-3 |
| 12-16-12/20-2 |
| 12-16-16/20-2 |
| 12-16-25/20-2 |
| 12-18-12/22-3 |
| 12-18-18/22-3 |
| 12-18-25/22-3 |
| 15-20-12/24-2,5 |
| 15-20-17,5/24-2,5 |
| 15-20-30/24-2,5 |
| 15-22-15/28-3 |
| 15-22-22/28-3 |
| 15-22-30/28-3 |
| 16-22-16/28-3,5 |
| 16-22-22/28-3,5 |
| 16-22-30/28-3,5 |
| 18-25-18/32-4 |
| 20-28-16/35-4 |
| 25-30-16/40-4 |
| 25-32-25/40-5 |
| 25-32-32/40-5 |
| 25-32-40/40-5 |
| 30-35-30/40-3 |
| 30-35-40/40-3 |
| 30-40-30/50-5 |
| 30-40-42/50-5 |
| 30-40-55/50-5 |
| 35-45-50/55-5 |
| 40-50-40/60-6 |
| 40-50-50/60-6 |
| 40-50-60/60-6 |
| 45-55-45/65-6 |
| 50-60-50/70-6 |
Product Tags:
|
|

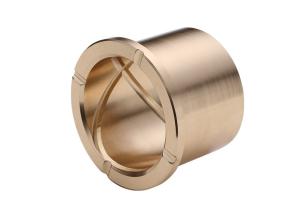

6mm 8mm ID Sleeve Sintered Bronze Bearing Bushings Images
|
