Oilless Bronze Engine Bushings, also known as Bimetal Bearing Bushes AISn20Cu Steel, are high-performance components designed to operate efficiently without the need for lubrication. These bushings are constructed from a combination of bronze and steel, creating a bimetallic material that offers exceptional wear resistance and durability.
The AISn20Cu alloy used in these bushings combines the strength and corrosion resistance of bronze with the hardness and stability of steel. This unique composition ensures that the bushings can withstand high loads and temperatures, making them suitable for use in engines and other demanding industrial applications.
The oilless design of these bushings eliminates the need for regular lubrication, reducing maintenance costs and downtime. This feature also helps to minimize wear and tear on the bushings, extending their lifespan and improving overall efficiency.
The precision manufacturing process ensures that the bushings fit securely and smoothly into engine components, providing a stable and reliable operation. Their compact design allows for easy installation and integration into existing machinery.
Wh you're upgrading an engine or replacing worn-out bushings, the Oilless Bronze Engine Bushings Bimetal Bearing Bushes AISn20Cu Steel are an excellent choice for improving performance and reliability. Contact us today to learn more about these bushings and how they can enhance the efficiency of your industrial operations.
Engine Bushings AISn20Cu Steel Bimetal Bushing
Engine Bushings AISn20Cu Steel Bimetal Bushing, AISn20Cu Bushes
Looking for bronze bushes factory direct sale? You can buy factory price bronze bushes from a great list of reliable China bronze bushes manufacturers, suppliers
Oilless Bronze Guide Bushes with Graphite - find quality bronze bushes, Sliding Bearings & bronze bushes from China.
JF-20 high tin aluminum base bearing is made of steel plate with AISN20Cu material rolled on the surface. The product has medium fatigue strength and bearing capacity, good corrosion resistance, good sliding performance and other characteristics.
The product is commonly used as bushing of medium and small power internal combustion engine, bushing of train engine and bushing of air compressor. It is a new product to replace alloy.
AISn20Cu Bushings
JF20 High Percentage Aluminum Alloy AISn20Cu Bushings Bitemal Bearings
JF-20 is a bearing with a high percentage of tin and aluminum composition.With stecl as back and press AISn20Cu as lining.the bushing is of fairly good performance in anti-fatigue, load capacity,anti-corrosion and smooth sliding movement.It is widely applied under high speed and low load.It can be made into bearing shells for internal combustion engine with mid or low power or bearing shells for trains,air compressor and coling machines.It is a good substitution for Babbit material.
Sliding layer can be machined with lubricating grooves and/or with grease indents
Aluminum-tin alloy for hydrodynam-ic applications
Steel+AlSn20Cu
JF-20 high percentage of tin with aluminum alloy bushing is backing on low carbon steel, pressed with AISn20Cu as liner. It has fairly good performance in anti-fatigue and good load capacity, anti-corrosion and smooth sliding movement.
It usually used as engine bearing with middle or low power, air compressor bushing. It is a good substitution for Babbit material.
| Aluminum alloy | AISn20Cu | Temperature Max | 150℃ |
| Load capacity | 30N/mm² | Harderness alloy | HB30~40
|
Product Introduction
High tin aluminum bearing, is based on steel matrix, the surface of roller AISn20Cu material products. This product has the secondary fatigue strength and bearing capacity, good corrosion resistance, good sliding properties, etc. This product is used for medium and small power of internal combustion engine bearing shell machine collar axis, the train engine bearings, air, is replacing bimetal novel products.
Technical Data
| Maximum dynamic load | 90P N/mm² | The highest temperature(°C) | Grease lubrication | 150°C |
| Maximum linear velocity | Grease lubrication | —— | Fluid lubrication | 250°C |
| High PV value | —— | Match the diameter of axle | hardness HRC | ≥270 |
| The coefficient of friction(μ) | —— | roughness Ra | 0.16~0.63 |
| Maximum linear velocity | Fluid lubrication | 15 | Alloy layer hardness | 30~40 |
| High PV value | 8 | Coefficient of thermal conductivity | 47W/mk |
| The coefficient of friction(μ) | 0.04~0.12 | Linear expansion coefficient (axial) | 18×10-6/K |
Thickness Tolerance Between Inner Hole Machining And Non-machining
Norminal Thiickness |
Tolerances of Series B (non-machinable) |
Tolerances of Series C (non-machinable) |
| 1.0 | -0.025 | +0.25
+0.15 |
| 2.0 | -0.030 | +0.25
+0.15 |
| 2.5 | -0.035 | +0.25
+0.15 |
| 3.0 | -0.040 | +0.30
+0.15 |
| 3.5 | -0.045 | +0.30
+0.15 |
| 3.5 | -0.050 | +0.30
+0.15 |
Application Field
Engineering machinery: end of popular institutions supporting wheel shaft sleeve, towing axle sleeve, tensioning shaft sleeve; Auto industry: the balance shaft lining, steel pin bushing, steering knuckle main shaft sleeve shaw, connecting rod bushings, valve rocker arm shaft sleeve, CAM shaft collar, differential bushings, transmission shaft sleeve, the internal combustion engine spindle watts, thrust washers, And plunger pump side piece, such as piece of gear pump side.
Oil Holes Form
Buckles Form
| Size | Customizable |
| Certification | ISO9001, TS16949 |
| Processing methods | Cold-extrusion |
| Operating temperature | 150℃(Grease lubrication),250℃(Oil lubrication) |
| Material | Steel+AlSn20Cu |
| Surface treatment | Copper Plating/Tin Plating |
| Typical Application | High speed,heavy load engine main shaft and air compressor ,cooling machine ,etc. |
Other Bimetal Boundary Lubrication Bearings
1. It is a steel and copper alloy product with low carbon steel plate as the matrix material and surface sintered CuPb10Sn10 or CuSn6Zn6Pb3 material. The product is a kind of balance bridge bushing and gasket for heavy duty vehicles with the strongest bearing capacity among the double alloy bearings.The slave wheel of a bulldozer;Automotive steel bushing, all used in this product. It is a widely used high - load low - speed sliding bearing.
2. The product is made of CuPb24Sn4 alloy sintered on the surface of a steel plate.The product has good anti-fatigue strength and bearing capacity.Suitable for medium speed medium load.There are occasions for oil sliding.When the surface is plated with soft alloy, it can be used as bearing and connecting rod bushing for high speed internal combustion engine to achieve good wear resistance and fatigue resistance.
3. The product is made of CuPb30 material sintered on the surface with steel plate as the matrix.Due to the high lead content, the product has good bite resistance and foreign body embedding.If the working surface is plated with soft alloy material, it can be used as high speed, medium and low load internal combustion engine spindle, connecting rod bushing, rocker arm bushing;Oil mercury side friction sheet.
4. Lead-free bimetal bearing, is an environmentally friendly bimetal bearing, it is based on low carbon steel plate as the matrix, the surface of the sintered CuSn6.5P0.1 steel copper alloy products.The product has high fatigue strength and bearing capacity, good sliding performance, in many cases can replace the lead bimetal bearing or copper sleeve.
Product Tags:
|
|

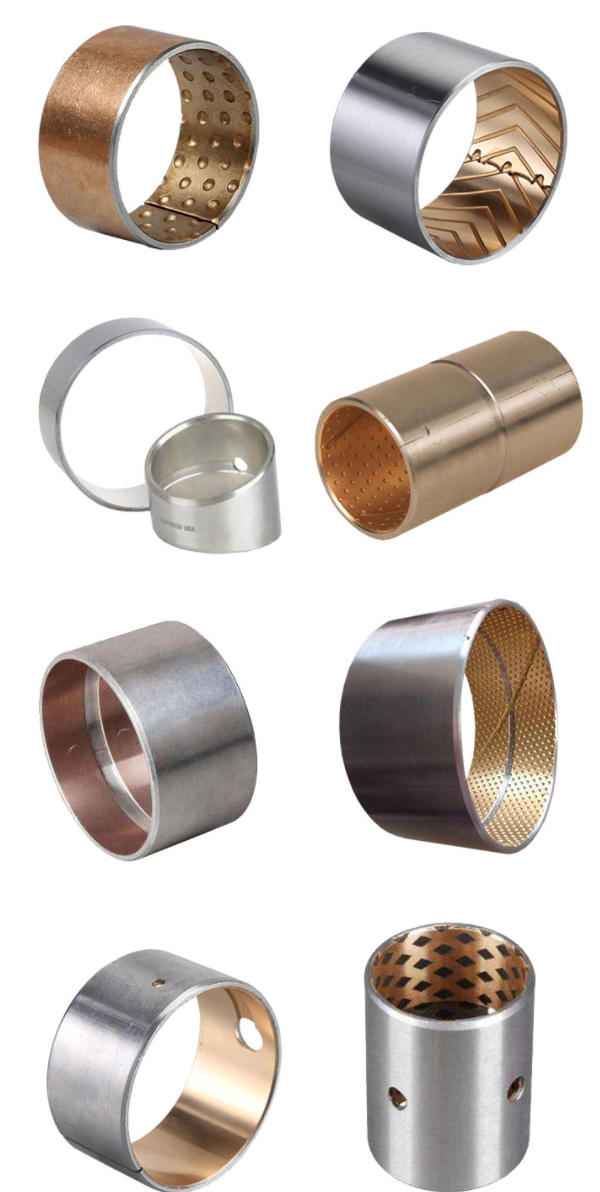

Oilless Bronze Engine Bushings Bimetal Bearing Bushes AISn20Cu Steel Images
|
