Bronze Metric Size Oil Free Bearing With SOB Maintenance

Product Categories
JIAXING VIIPLUS INTERNATIO NAL TRADING CO.,LTD
Contact Now

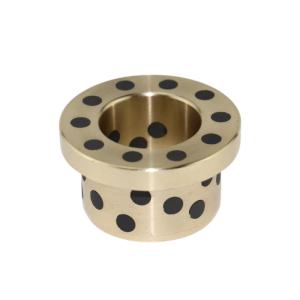

Bronze Metric Size Oil Free Bearing With SOB Maintenance

Brand Name : VIIPLUS

Model Number : Oilless Bush

Certification : ISO 9001

Place of Origin : oilless bushing

MOQ : negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : plug graphite bearings, China, manufacturers, suppliers, factory, wholesale, Metal Journal Bearing, PTFE Self Lubricating Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing

Delivery Time : 7-15 work days

Packaging Details : Export standard packing

Material : bronze with solid lubricant

Types : Flanged

Size : Metric size & Custom size

Lubrication : Graphite, oilless

Processing method : CNC processing

Surface treatment : Oiled, plugged graphite

Features : Good physical performance and good capability for casting

Samples : Avaliable

Bearing Bushing Factory Price : tiffany@viiplus.com

Self-lubricating Bearing Bushing Manufacturer : https://www.viiplus.com/

Oilless Bearing Manufacturer : https://www.bronzelube.com/

Manufacturer : bucha de bronze grafitado

High Light : Solid Bronze Plain Bearings, Graphite Flange Bronze Plain Bearings, Mining Machinery

Oilless Bushes : Oilless Bush. Copper Alloy. Straight type. SOB. Material Base Copper alloy (SO-2). Solid lubricant

Bush Bearings Manufacturers Suppliers Exporters : plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/

Oilless Bush Supplier : www.VIIPLUS.com offers oilless bushings on their website [1]. You can visit their website to explore their product range and make inquiries.

Contact Now

The Bronze Metric Size Oil-Free Bearing with SOB Maintenance is a unique and efficient bearing solution designed to provide reliable performance without the need for regular lubrication. Constructed from high-quality bronze material, it offers exceptional durability and wear resistance, ensuring long-lasting operation even in harsh industrial environments.

The oil-free design of this bearing eliminates the need for regular oiling or lubrication, significantly reducing maintenance requirements and operational costs. This feature also makes it an environmentally friendly choice as it eliminates the potential for oil leaks or spills.

The SOB maintenance feature refers to a special self-lubricating system that ensures continuous lubrication of the bearing surfaces. This system provides a constant supply of lubricant, minimizing friction and wear, ensuring smooth and efficient operation.

The metric size of this bearing allows for easy integration into various industrial applications and equipment. Its precision manufacturing ensures a secure and reliable fit, minimizing any potential for misalignment or slippage.

Overall, the Bronze Metric Size Oil-Free Bearing with SOB Maintenance is a robust and reliable bearing solution that offers long-lasting performance with minimal maintenance requirements. Its oil-free design and self-lubricating system make it an ideal choice for industrial applications that demand smooth and efficient operation.

SOB Maintenance-Free Bearing, Bronze With Solid Lubricant

SOBF Flanged bush, self-lubricating, Universal machinery bronze bushing bearing sleeve self lubrication bushing, mold parts

Buying Request of Graphite Plugged High Tensile Brass Bearing

Copper Brass Bronze Graphite Embedded Bushing

SHOULDER BUSHINGS - SELF-LUBRICATING

SOBF bearings consist of highly wear-resistance copper cast alloy whose sliding surfaces are evenly provided with a certain percentage of solid lubricant plugs according to work condition, high-strength copper alloy provides a high load-bearing capacity and the solid lubricant can be formation of low friction film.
Bronze Metric Size Oil Free Bearing With SOB Maintenance

The advantages of SOBF bearings : dry operation; can be performed well with high load and low speed; reciprocating motion, wagging motion, start and stop frequently are difficulty for keeping oil film. It still may play advantageous of wear resistance; Excellent chemical resistance and anti corrosion; Flexible, simple, convenient and abundant designing of standard, can be chosen by.

Application

The product is widely used in ctontinuous casting rolling machine, mining machinery, shipping machinery, turbine, injection machinery, auto mould and so on.

Variants:
Articlenumber Article name Inner diameter d Outer diameter D Length L D1 l f r
118008010 SOBF8-12-10 8 12 10 20 2 0,5
118008012 SOBF8-12-12 8 12 12 20 2 0,5
118008015 SOBF8-12-15 8 12 15 20 2 1
118010010 SOBF10-14-10 10 14 10 22 2 1
118010012 SOBF10-14-12 10 14 12 22 2 1
118010015 SOBF10-14-15 10 14 15 22 2 1
118010017 SOBF10-14-17 10 14 17 22 2 1
118010020 SOBF10-14-20 10 14 20 22 2 1
118012010 SOBF12-18-10 12 18 10 25 3 1
118012012 SOBF12-18-12 12 18 12 25 3 1
118012015 SOBF12-18-15 12 18 15 25 3 1
118012020 SOBF12-18-20 12 18 20 25 3 1
118012025 SOBF12-18-25 12 18 25 25 3 1
118012030 SOBF12-18-30 12 18 30 25 3 1
118013010 SOBF13-19-10 13 19 10 26 3 1
118013012 SOBF13-19-12 13 19 12 26 3 1
118013015 SOBF13-19-15 13 19 15 26 3 1
118013020 SOBF13-19-20 13 19 20 26 3 1
118013025 SOBF13-19-25 13 19 25 26 3 1
118013030 SOBF13-19-30 13 19 30 26 3 1
118014015 SOBF14-20-15 14 20 15 27 3 1
118014020 SOBF14-20-20 14 20 20 27 3 1
118014025 SOBF14-20-25 14 20 25 27 3 1
118015010 SOBF15-21-10 15 21 10 28 3 1
118015012 SOBF15-21-12 15 21 12 28 3 1
118015015 SOBF15-21-15 15 21 15 28 3 1
118015020 SOBF15-21-20 15 21 20 28 3 1
118015025 SOBF15-21-25 15 21 25 28 3 1
118015030 SOBF15-21-30 15 21 30 28 3 1
118016012 SOBF16-22-12 16 22 12 29 3 1
118016015 SOBF16-22-15 16 22 15 29 3 1
118016018 SOBF16-22-18 16 22 18 29 3 1
118016020 SOBF16-22-20 16 22 20 29 3 1
118016023 SOBF16-22-23 16 22 23 29 3 1
118016025 SOBF16-22-25 16 22 25 29 3 1
118016030 SOBF16-22-30 16 22 30 29 3 1
118016035 SOBF16-22-35 16 22 35 29 3 1
118016040 SOBF16-22-40 16 22 40 29 3 1
118018015 SOBF18-24-15 18 24 15 32 3 1
118018020 SOBF18-24-20 18 24 20 32 3 1
118018025 SOBF18-24-25 18 24 25 32 3 1
118018030 SOBF18-24-30 18 24 30 32 3 1
118018035 SOBF18-24-35 18 24 35 32 3 1
118018040 SOBF18-24-40 18 24 40 32 3 1
118020015 SOBF20-30-15 20 30 15 40 5 1
118020020 SOBF20-30-20 20 30 20 40 5 1
118020025 SOBF20-30-25 20 30 25 40 5 1
118020030 SOBF20-30-30 20 30 30 40 5 1
118020035 SOBF20-30-35 20 30 35 40 5 1
118020040 SOBF20-30-40 20 30 40 40 5 1
118025015 SOBF25-35-15 25 35 15 45 5 1
118025020 SOBF25-35-20 25 35 20 45 5 2
118025025 SOBF25-35-25 25 35 25 45 5 2
118025030 SOBF25-35-30 25 35 30 45 5 2
118025035 SOBF25-35-35 25 35 35 45 5 2
118025040 SOBF25-35-40 25 35 40 45 5 2
118025050 SOBF25-35-50 25 35 50 45 5 2
118030020 SOBF30-40-20 30 40 20 50 5 2
118030025 SOBF30-40-25 30 40 25 50 5 2
118030030 SOBF30-40-30 30 40 30 50 5 2
118030035 SOBF30-40-35 30 40 35 50 5 2
118030040 SOBF30-40-40 30 40 40 50 5 2
118030050 SOBF30-40-50 30 40 50 50 5 2
118031020 SOBF31,5-40-20 31,5 40 20 50 5 2
118031030 SOBF31,5-40-30 31,5 40 30 50 5 2
118031035 SOBF31,5-40-35 31,5 40 35 50 5 2
118031040 SOBF31,5-40-40 31,5 40 40 50 5 2
118035020 SOBF35-45-20 35 45 20 60 5 2
118035025 SOBF35-45-25 35 45 25 60 5 2
118035030 SOBF35-45-30 35 45 30 60 5 2
118035035 SOBF35-45-35 35 45 35 60 5 2
118035040 SOBF35-45-40 35 45 40 60 5 2
118035050 SOBF35-45-50 35 45 50 60 5 2
118040020 SOBF40-50-20 40 50 20 65 5 2
118040025 SOBF40-50-25 40 50 25 65 5 2
118040030 SOBF40-50-30 40 50 30 65 5 2
118040035 SOBF40-50-35 40 50 35 65 5 2
118040040 SOBF40-50-40 40 50 40 65 5 2
118040050 SOBF40-50-50 40 50 50 65 5 2
118045030 SOBF45-55-30 45 55 30 70 5 2
118045035 SOBF45-55-35 45 55 35 70 5 2
118045040 SOBF45-55-40 45 55 40 70 5 2
118045050 SOBF45-55-50 45 55 50 70 5 2
118045060 SOBF45-55-60 45 55 60 70 5 2
118050030 SOBF50-60-30 50 60 30 75 5 2
118050035 SOBF50-60-35 50 60 35 75 5 2
118050040 SOBF50-60-40 50 60 40 75 5 2
118050050 SOBF50-60-50 50 60 50 75 5 2
118050060 SOBF50-60-60 50 60 60 75 5 2
118055040 SOBF55-65-40 55 65 40 80 5 2
118055060 SOBF55-65-60 55 65 60 80 5 2
118060040 SOBF60-75-40 60 75 40 90 7,5 3
118060050 SOBF60-75-50 60 75 50 90 7,5 3
118060080 SOBF60-75-80 60 75 80 90 7,5 3
118065060 SOBF65-80-60 65 80 60 95 7,5 3
118070050 SOBF70-85-50 70 85 50 105 7,5 3
118070080 SOBF70-85-80 70 85 80 105 7,5 3 1
118075060 SOBF75-90-60 75 90 60 110 7,5 3 1
118080060 SOBF80-100-60 80 100 60 120 10 3 1
118080080 SOBF80-100-80 80 100 80 120 10 3 1
118080100 SOBF80-100-100 80 100 100 120 10 3 1
118090060 SOBF90-110-60 90 110 60 130 10 3 1
118090080 SOBF90-110-80 90 110 80 130 10 3 1
118100080 SOBF100-120-80 100 120 80 150 10 3 1
118100100 SOBF100-120-100 100 120 100 150 10 3 1
118120080 SOBF120-140-80 120 140 80 170 10 3 1
118120100 SOBF120-140-100 120 140 100 170 10 3 1
118130080 SOBF130-150-80 130 150 80 180 10 3 1
118130100 SOBF130-150-100 130 150 100 180 10 3 1
118140080 SOBF140-160-80 140 160 80 190 10 3 1
118140100 SOBF140-160-100 140 160 100 190 10 3 1
118150100 SOBF150-170-100 150 170 100 200 10 3 1
118150120 SOBF150-170-120 150 170 120 200 10 3 1
118160100 SOBF160-180-100 160 180 100 210 10 3 1
118160120 SOBF160-180-120 160 180 120 210 10 3 1
