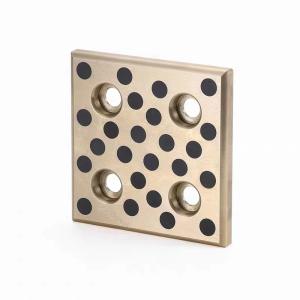

Wear Block Solid Bronze Self Lube Wear Plates Lower Friction Brass Wear Plate C86300 Retainers Standard Dayton Moeller

Brand Name : bronzelube.com

Model Number : Straight Bushing:Bronze with Embedded Solid Lubricant Material,Lead Free

Certification : Plain Sleeve Bearings Standards met: RoHS

Place of Origin : Self Lube Bearings

MOQ : Bronze Precision Wear Plates & Lubricating Parts made to order

Price : US$0.11 - US$21.11 / Pieces,NEGOTIABLE

Payment Terms : TT IN ADVANCE,L/C,Western Union

Supply Ability : Self Lube Bearing Manufacturing Dimensions Tolerance Assembly

Delivery Time : Shipped in 3-20 work days

Packaging Details : Cartons with good information lable

Material : Aluminum-Bronze With Solid Lubricant

Types : Silde Block

Description : Solid Lubricating Bearings

Application : Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc.

Size : standard,Drawings

Shape : Plate

Production Feature : Casting

Bearing Bushing Factory Price : tiffany@viiplus.com

Self-lubricating Bearing Bushing Manufacturer : https://www.viiplus.com/

High Light : Bronze Wear Plates , Self Lubricating - Special Brass Alloy

Self Lubricating Graphite Plugged Bronze Plate : Bronze Wear Plate and Pad for Industrial Machinery, manufacturer of bronze sleeve bushings, we often receive requests for a variety of product types.

Bush Bearings Manufacturers Suppliers Exporters : plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/

Contact Now

Dayton Moeller offers a range of wear blocks and solid bronze self-lubricating wear plates that are designed to provide lower friction and extended wear life. Made from C86300 brass, these wear plates are ideal for applications where high loads and sliding motion are present.

The C86300 brass alloy used in these wear plates contains tin, aluminum, manganese, and graphite, which provides excellent wear resistance and self-lubricating properties. The graphite particles embedded in the alloy create a natural lubricating effect, reducing friction and wear on contacting surfaces.

The solid bronze construction of these wear blocks ensures durability and strength, while the self-lubricating properties significantly reduce the need for external lubricants. This not only saves on maintenance costs but also eliminates the potential for lubricant contamination in critical applications.

Dayton Moeller's standard wear block retainers are designed to securely hold the wear plates in place, ensuring reliable performance over extended periods of use. These retainers are also made from high-quality materials to match the durability of the wear plates themselves.

In summary, Dayton Moeller's solid bronze self-lubricating wear plates made from C86300 brass are an excellent choice for applications requiring lower friction and extended wear life. The combination of the alloy's composition, solid bronze construction, and self-lubricating properties makes these wear blocks a reliable solution for a wide range of industrial applications.

Solid Bronze Sliding Block Plug Graphite Cast Bronze Bearing Solid Bronze Plate C86300 |VSB-50P

Self Lubricating Bronze Wear Plate Dayton Moeller Punch standard

Wear Plate and Wear Products are available from stock catalog or can be manufactured to your specific print or dimensions.

Wear Plate and Wear Products are available in inch or metric sizes to meet the following specifications:

WEAR PLATE & WEAR PRODUCTS

viiplus international is an authorized, full line, stocking distributor for the manufacturers of wear plate and wear products:

1.Graphite Infused Wear Products

2.Graphite Infused V Gibs

3.Graphite Infused L Gibs

Wear Plate and Wear Products are available in

Self Lubricating | Ear Strip / Wear Strips | Graphite Impregnated Plugs | Self Lubricating Bronze | U&V Blocks | Aluminum Bronze Wear Plate | Gib Assemblies | L Gibs | V Gibs |Steel with Graphite Plugs | Base Plate | Bronze with Graphite Plugs | Special Wear Plate |Custom Wear Plates | Automotive Wear Plates | Keeper Block Wear Plates | Aerial Cam | Die Mount Cam | Cam unit | Guide Post | Guide Post Set | Sintered Wear Plate | Die Components | Bushings | Pins | Mold Components | Blank Die | Die Ace.

Chemical Requirements
Copper Alloy UNS No.	Composition, % max, except as indicated
						Nickel
	Copper	Tin	Lead	Zinc	Iron	Including	Aluminum	Manganese	Antimony	Sulfur	Phosphorus	Silicon
						Cobalt
C86300	60.0–66.0	0.20	0.20	22.0–28.0	2.0–4.0	1.0A	5.0–7.5	2.5–5.0	...	...	...	...
C90500	86.0–89.0	9.0–11.0	0.30	1.0–3.0	0.20	1.0A	0.005	...	0.20	0.05	0.05B	0.005
C91100	82.0–85.0	15.0–17.0	0.25	0.25	0.25	0.50A	0.005	...	0.20	0.05	1.0B	0.005
C91300	79.0–82.0	18.0–20.0	0.25	0.25	0.25	0.50A	0.005	...	0.20	0.05	1.0B	0.005
C93700	78.0–82.0	9.0–11.0	8.0–11.0	0.8	0.7C	0.50A	0.005	...	0.50	0.08	0.10B	0.005
A In determining copper minimum, copper may be calculated as copper plus nickel.
B For continuous castings, phosphorus shall be 1.5 % max.
C Iron shall be 0.35 % max. when used for steel-backed.

CHARACTERISTICS

VSB-50P Sliding Block olid Bronze Metallic Self-lubricating Bearings

Solid Lubricant Cast Bronze Bearings Silde Block With Immediate Running Velocity

Metric Bronze Bushings Block Tin-Bronze For Metallurgy / Drying Machine

Cast Bronze Bearing with Graphite Plugs

VSB-50P Sliding Block

Copper Cast Bronze Bearings Slide Block Anti Abrasion For Transportation Machines

1. May work without any ol for long period

2. Extremely high load capacity, good anti-wear and lower friction

3. Particularly appropriate for low speed and high load

4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed

5. Good chemical resistant and anti-corrosion characteristics

6. Can b€ used in wide range of temperature from -40℃-+300℃

Aluminum-Bronze With Solid Lubricant Casting Bronze Silde Block

Aluminum-Bronze Solid Lubricating Silde Block is backed with Aluminum-Bronze alloy with good capability of mechanics, castings and anti-erosion. The surface of Aluminum-Bronze Solid Lubricating Silde Block is regularly and finely machined with sockets in which particular solid lubricant is filled.

Aluminum-Bronze Solid Lubricating Silde Block is widely used conditions with mediate load but higher temperature and condition with mediate running velocity etc.

The surface of Aluminum-Bronze Solid Lubricating Silde Block is regularly and finely machined with sockets in which particular solid lubricant is filled.

STRUSTURE

VSB-50P Sliding Block material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.

TECHNICAL DATA

Grade	50#	50S1	50S2	50S3	650S5
Material	CuZn25AI5Mn4Fe3	CuSn5Pb5Zn5	CuAI10Ni5Fe5	CuSn12	CuZn25AI5Mn4Fe3
Density	8	8.9	7.8	8.9	8
Hardness	≥210	≥70	≥150	≥75	≥235
Tensile strength	≥750	≥250	≥500	≥270	≥800
Yield strength	≥450	≥90	≥260	≥150	≥450
Elongation	≥12	≥13	≥10	≥5	≥8
Coefficient o linear expansion	1.9×10-5/℃	1.8×10-5/℃	1.6×10-5/℃	1.8×10-5/℃	1.9×10-5/℃
Max.Temp.	-40~+300℃	-40~+400℃	-40~+400℃	-40~+400℃	-40~+300℃
Max.dynamic load	100	60	50	70	120
Max.speed(Dry)	15	10	20	10	15
N/mm²*m/s(Lubrication)	200	60	60	80	200
Compression deformation	< 0.01 mm	< 0.05mm	< 0.04mm	< 0.05mm	< 0.005mm

Chemical Compositions

Product NO.	Chemical Compositions
VSB-50	Cu	Zn	Al	Fe	Mn	Si	Ni	Sn	Pb
VSB-50	60~66	22~28	5.0~8.0	2.0~4.0	2.5~5.0	<0.1	<0.5	<0.2	<0.2

AVAILABILITY

Bearing forms available in standard dimensions

· Cylindrical bushes

· Flanged bushes

· Sliding plates

Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs

Wear Block Solid Bronze Self Lube Wear Plates Lower Friction Brass Wear Plate C86300 Retainers Standard Dayton Moeller

TYPICAL APPLICATIONS

This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...

Solid Bronze Metallic Self-lubricating CUSTOMER SIZE Dimensions and Tolerances
